Centrifugal fans are essential for applications requiring high static pressure and steady airflow. These fans work by drawing air into the fan’s inlet and forcing it out at a 90-degree angle through a discharge outlet. Due to their robust design, centrifugal fans are well-suited for environments that demand reliable ventilation, such as HVAC systems, industrial exhausts, and air handling units. Their ability to handle both high airflow and resistance makes them a preferred choice in various industries, ensuring optimal air circulation and consistent performance over time.

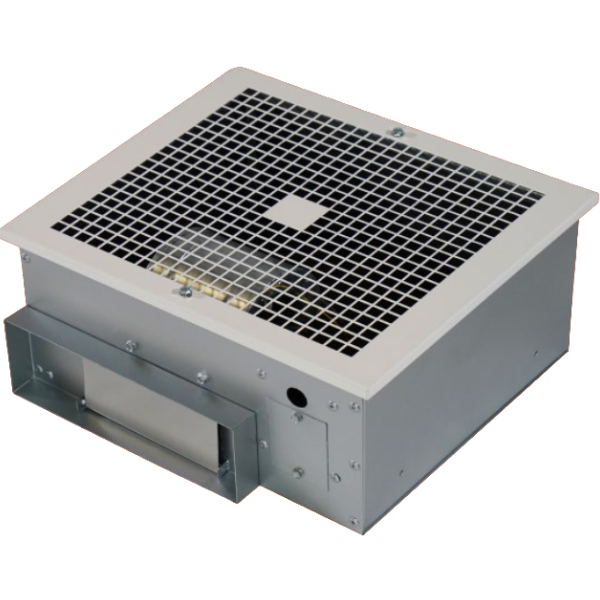

Centrifugal Ceiling / Cassette Fan

Model: CF

  • Direct drive model with forward-curved wheel for efficient operation.
  • Airflow capacity: Up to 366 CFM (621 m³/hour).
  • Static pressure: Up to 2.87 inches w.g. (715 Pa).
  • Powder-coated aluminum grille for enhanced durability and aesthetics.

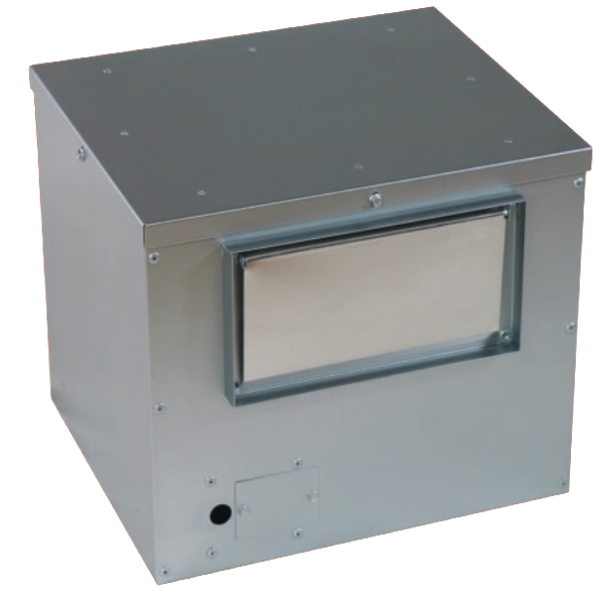

Centrifugal Ceiling / Inline Fan

Model: CF

  • Direct or belt-driven model with forward-curved wheel for versatile performance.
  • High airflow capacity: Up to 10,000 CFM (16,990 m³/hour).
  • Static pressure: Up to 1.4 inches w.g. (350 Pa).

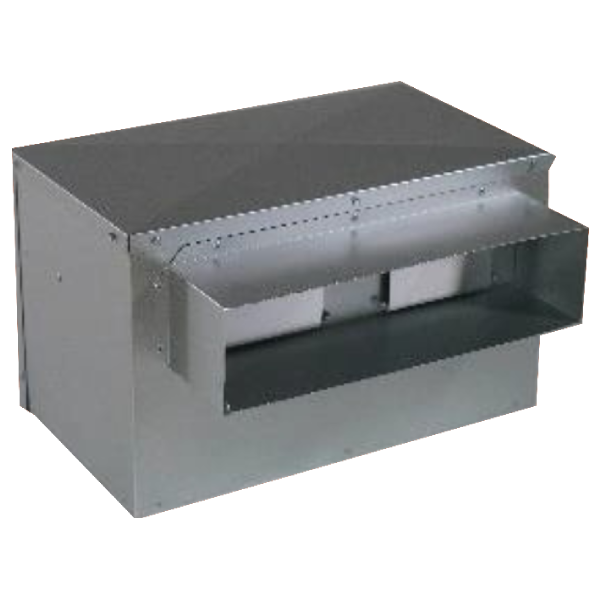

Centrifugal Twin Fan

Model: TCF

  • Direct or belt-drive model with forward-curved twin blowers and Auto-Change Over Panel (ACOP) for automatic fan duty switching.
  • Airflow capacity: Up to 5,000 CFM (8,495 m³/hour).
  • Static pressure: Up to 1 inch w.g. (250 Pa).
  • Available for inline or roof applications for versatile installation options.

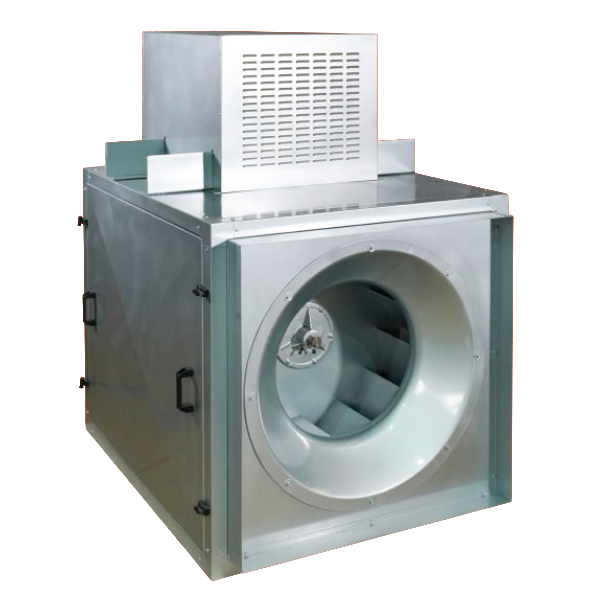

Centrifugal Inline Fan

Model: SQ

  • Direct or belt-driven model for flexible operation.
  • Galvanized steel square housing with a durable aluminum wheel for long-lasting performance.
  • Suitable for both indoor and outdoor (roof) applications.
  • Removable side panels for easy access, inspection, and maintenance.
  • Flexible mounting options: Can be installed in horizontal, vertical, or other configurations. High airflow capacity: Up to 27,900 CFM (47,402 m³/hour). Strong static pressure: Up to 4 inches w.g. (1000 Pa).

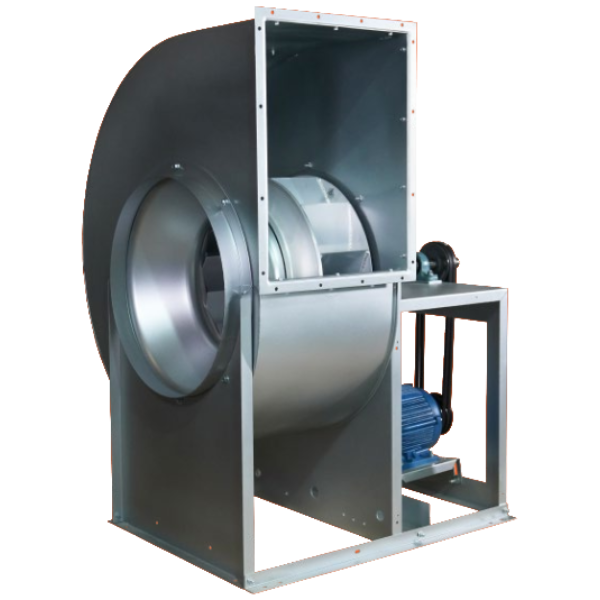

Centrifugal Utility Fan

Model: UF

  • Heavy-gauge powder-coated steel housing for durability and corrosion resistance.
  • Aluminum wheel for standard applications, steel wheel for smoke exhaust applications.
  • Impeller diameter range: 11.26 to 41 inches (286 mm to 1,045 mm).
  • High airflow capacity: Up to 27,500 CFM (46,722 m³/hour).
  • Strong static pressure: Up to 7 inches w.g. (1,750 Pa).
  • Versatile functionality: Suitable for supply, grease exhaust, and smoke exhaust applications.
  • 8 standard discharge positions for flexible installation.
